mARG1 cassette 1

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: mARG1 cassette 1
出品公司: 爱迪基因
目录编号: 134343
存储实验室: Mikhail Shapiro

载体骨架基本信息
载体名称: pAF PB
载体出品公司: --
载体抗性: 氨苄青霉素
空载体大小: --
完整质粒大小: 6756 bp
载体修饰: --
载体类型: 哺乳动物表达,合成生物学
筛选标记: --
高拷贝/低拷贝: 高拷贝
生长条件: 30 ℃

插入基因信息
插入基因名称: mARG 1 cassete 1,Mammalian acoustic reporter gene1 cassette 1
物种来源: Bacillus megaterium
插入大小: 1571 bp
基因突变: --
GenBank编号 --
启动子 TRE3G
标签/融合蛋白: --
克隆方法: Gibson克隆
5' 克隆位点: --
3' 克隆位点: --
5' 测序引物 AAAGGAAAACCACGTCCCCGT
3' 测序引物 CCCAGAAGGTACCCCATTGTA

文献引用方法
材料和方法部分: mARG1 cassette 1 was a gift from Mikhail Shapiro (Addgene plasmid # 134343 ; http://n2t.net/addgene:134343 ; RRID:Addgene_134343)
参考文献部分: Ultrasound imaging of gene expression in mammalian cells. Farhadi A, Ho GH, Sawyer DP, Bourdeau RW, Shapiro MG. Science. 2019 Sep 27;365(6460):1469-1475. doi: 10.1126/science.aax4804. 10.1126/science.aax4804 PubMed 31604277

载体图谱质粒图谱和多克隆位点信息

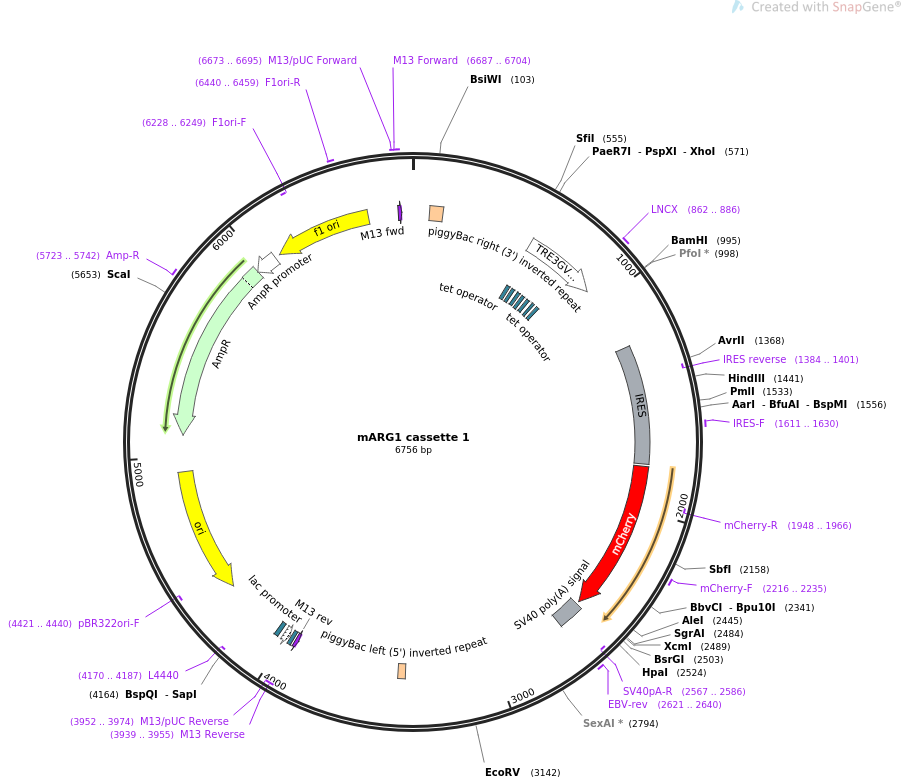

mARG1 cassette 1质粒图谱

载体简介

载体序列

LOCUS       mARG1 cassette 1                6756 bp ds-DNA     circular SYN 12-MAY-2021
DEFINITION  Mammalian acoustic reporter gene 1 cassette 1 on the piggyBac
            trasposon plasmid..
ACCESSION   .
VERSION     .
KEYWORDS    mARG1 cassette 1
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 6756)
  AUTHORS   Farhadi A, Ho GH, Sawyer DP, Bourdeau RW, Shapiro MG
  TITLE     Ultrasound imaging of gene expression in mammalian cells.
  JOURNAL   Science. 2019 Sep 27;365(6460):1469-1475. doi:
            10.1126/science.aax4804.
  PUBMED    31604277
REFERENCE   2  (bases 1 to 6756)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported May 12, 2021 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..6756
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     repeat_region   78..140
                     /label=piggyBac right (3') inverted repeat
                     /note="piggyBac transposon-specific inverted terminal
                     repeat sequence (ITR)"
     promoter        574..923
                     /label=TRE3GV promoter
                     /note="3rd-generation Tet-responsive promoter that can be
                     activated by binding of Tet-On(R) 3G, optimized for
                     retroviral and lentiviral vectors"
     protein_bind    582..600
                     /gene="tetO"
                     /label=tet operator
                     /bound_moiety="tetracycline repressor TetR"
                     /note="bacterial operator O2 for the tetR and tetA genes"
     protein_bind    618..636
                     /gene="tetO"
                     /label=tet operator
                     /bound_moiety="tetracycline repressor TetR"
                     /note="bacterial operator O2 for the tetR and tetA genes"
     protein_bind    654..672
                     /gene="tetO"
                     /label=tet operator
                     /bound_moiety="tetracycline repressor TetR"
                     /note="bacterial operator O2 for the tetR and tetA genes"
     protein_bind    690..708
                     /gene="tetO"
                     /label=tet operator
                     /bound_moiety="tetracycline repressor TetR"
                     /note="bacterial operator O2 for the tetR and tetA genes"
     protein_bind    726..744
                     /gene="tetO"
                     /label=tet operator
                     /bound_moiety="tetracycline repressor TetR"
                     /note="bacterial operator O2 for the tetR and tetA genes"
     protein_bind    762..780
                     /gene="tetO"
                     /label=tet operator
                     /bound_moiety="tetracycline repressor TetR"
                     /note="bacterial operator O2 for the tetR and tetA genes"
     protein_bind    798..816
                     /gene="tetO"
                     /label=tet operator
                     /bound_moiety="tetracycline repressor TetR"
                     /note="bacterial operator O2 for the tetR and tetA genes"
     primer_bind     862..886
                     /label=LNCX
                     /note="Human CMV promoter, forward primer"
     misc_feature    1240..1791
                     /label=IRES
                     /note="internal ribosome entry site (IRES) of the
                     encephalomyocarditis virus (EMCV)"
     primer_bind     complement(1384..1401)
                     /label=IRES reverse
                     /note="IRES internal ribosome entry site, reverse primer.
                     Also called pCDH-rev"
     primer_bind     1611..1630
                     /label=IRES-F
                     /note="IRES internal ribosome entry site, forward primer"
     CDS             1803..2513
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     complement(1948..1966)
                     /label=mCherry-R
                     /note="mCherry, reverse primer"
     primer_bind     2216..2235
                     /label=mCherry-F
                     /note="mCherry, forward primer"
     polyA_signal    2530..2651
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(2567..2586)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     2621..2640
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     repeat_region   3414..3448
                     /label=piggyBac left (5') inverted repeat
                     /note="piggyBac transposon-specific inverted terminal
                     repeat sequence (ITR)"
     primer_bind     complement(3939..3955)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(3939..3955)
                     /label=M13 Reverse
                     /note="In lacZ gene. Also called M13-rev"
     primer_bind     complement(3952..3974)
                     /label=M13/pUC Reverse
                     /note="In lacZ gene"
     protein_bind    3963..3979
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(3987..4017)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    4032..4053
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     primer_bind     complement(4170..4187)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(4341..4929)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(4421..4440)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(5100..5960)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     5723..5742
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(5961..6065)
                     /gene="bla"
                     /label=AmpR promoter
     rep_origin      complement(6091..6546)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(6228..6249)
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     6440..6459
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     primer_bind     6673..6695
                     /label=M13/pUC Forward
                     /note="In lacZ gene"
     primer_bind     6687..6704
                     /label=M13 Forward
                     /note="In lacZ gene. Also called M13-F20 or M13 (-21)
                     Forward"
     primer_bind     6688..6704
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 gcggtgcaaa tgtgttttac agcgtgatgg agcagatgaa gatgctcgac acgctgcaga
       61 acacgcagct agattaaccc tagaaagata atcatattgt gacgtacgtt aaagataatc
      121 atgtgtaaaa ttgacgcatg tgttttatcg gtctgtatat cgaggtttat ttattaattt
      181 gaatagatat taagttttat tatatttaca cttacatact aataataaat tcaacaaaca
      241 atttatttat gtttatttat ttattaaaaa aaacaaaaac tcaaaatttc ttctataaag
      301 taacaaaact tttatgaggg acagcccccc cccaaagccc ccagggatgt aattacgtcc
      361 ctcccccgct agggggcagc agcgagccgc ccggggctcc gctccggtcc ggcgctcccc
      421 ccgcatcccc gagccggcag cgtgcgggga cagcccgggc acggggaagg tggcacggga
      481 tcgctttcct ctgaacgctt ctcgctgctc tttgagcctg cagacacctg gggggatacg
      541 gggaaaaggc ctccacggcc actagtttca ctcgagttta ctccctatca gtgatagaga
      601 acgtatgaag agtttactcc ctatcagtga tagagaacgt atgcagactt tactccctat
      661 cagtgataga gaacgtataa ggagtttact ccctatcagt gatagagaac gtatgaccag
      721 tttactccct atcagtgata gagaacgtat ctacagttta ctccctatca gtgatagaga
      781 acgtatatcc agtttactcc ctatcagtga tagagaacgt atgtcgaggt aggcgtgtac
      841 ggtgggcgcc tataaaagca gagctcgttt agtgaaccgt cagatcgcct ggagcaattc
      901 cacaacactt ttgtcttata cttggtacct atgcatgcca ccatgagcat ccagaagtcc
      961 accaacagca gcagcctggc cgaagtgatc gaccggatcc tggacaaggg catcgtgatc
     1021 gacgccttcg ccagagtgtc cgtcgtgggc atcgagatcc tgaccatcga ggccagagtc
     1081 gtgatcgcca gcgtggacac ctggctgaga tatgccgaag ccgtgggcct gctgcgggac
     1141 gacgtggaag aaaatggcct gcccgagcgg agcaacagct ctgagggaca gccccggttc
     1201 agcatctgaa ctaaatcgca ctgtcggcgt ccccccctaa cgttactggc cgaagccgct
     1261 tggaataagg ccggtgtgcg tttgtctata tgttattttc caccatattg ccgtcttttg
     1321 gcaatgtgag ggcccggaaa cctggccctg tcttcttgac gagcattcct aggggtcttt
     1381 cccctctcgc caaaggaatg caaggtctgt tgaatgtcgt gaaggaagca gttcctctgg
     1441 aagcttcttg aagacaaaca acgtctgtag cgaccctttg caggcagcgg aaccccccac
     1501 ctggcgacag gtgcctctgc ggccaaaagc cacgtgtata agatacacct gcaaaggcgg
     1561 cacaacccca gtgccacgtt gtgagttgga tagttgtgga aagagtcaaa tggctctcct
     1621 caagcgtatt caacaagggg ctgaaggatg cccagaaggt accccattgt atgggatctg
     1681 atctggggcc tcggtgcaca tgctttacat gtgtttagtc gaggttaaaa aacgtctagg
     1741 ccccccgaac cacggggacg tggttttcct ttgaaaaaca cgatgataat atggccacaa
     1801 ccatggtgag caagggcgag gaggataaca tggccatcat caaggagttc atgcgcttca
     1861 aggtgcacat ggagggctcc gtgaacggcc acgagttcga gatcgagggc gagggcgagg
     1921 gccgccccta cgagggcacc cagaccgcca agctgaaggt gaccaagggc ggccccctgc
     1981 ccttcgcctg ggacatcctg tcccctcagt tcatgtacgg ctccaaggcc tacgtgaagc
     2041 accccgccga catccccgac tacttgaagc tgtccttccc cgagggcttc aagtgggagc
     2101 gcgtgatgaa cttcgaggac ggcggcgtgg tgaccgtgac ccaggactcc tccctgcagg
     2161 acggcgagtt catctacaag gtgaagctgc gcggcaccaa cttcccctcc gacggccccg
     2221 taatgcagaa gaagaccatg ggctgggagg cctcctccga gcggatgtac cccgaggacg
     2281 gcgccctgaa gggcgagatc aagcagaggc tgaagctgaa ggacggcggc cactacgacg
     2341 ctgaggtcaa gaccacctac aaggccaaga agcccgtgca gctgcccggc gcctacaacg
     2401 tcaacatcaa gttggacatc acctcccaca acgaggacta caccatcgtg gaacagtacg
     2461 aacgcgccga gggccgccac tccaccggcg gcatggacga gctgtacaag tgaactagtt
     2521 cgttaactaa acttgtttat tgcagcttat aatggttaca aataaagcaa tagcatcaca
     2581 aatttcacaa ataaagcatt tttttcactg cattctagtt gtggtttgtc caaactcatc
     2641 aatgtatctt atcatgtctg gaattgactc aaatgatgtc aattagtcta tcagaagctc
     2701 atctggtctc ccttccgggg gacaagacat ccctgtttaa tatttaaaca gcagtgttcc
     2761 caaactgggt tcttatatcc cttgctctgg tcaaccaggt tgcagggttt cctgtcctca
     2821 caggaacgaa gtccctaaag aaacagtggc agccaggttt agccccggaa ttgactggat
     2881 tcctttttta gggcccattg gtatggcttt ttccccgtat ccccccaggt gtctgcaggc
     2941 tcaaagagca gcgagaagcg ttcagaggaa agcgatcccg tgccaccttc cccgtgcccg
     3001 ggctgtcccc gcacgctgcc ggctcgggga tgcgggggga gcgccggacc ggagcggagc
     3061 cccgggcggc tcgctgctgc cccctagcgg gggagggacg taattacatc cctgggggct
     3121 ttgggggggg gctgtccctg atatctataa caagaaaata tatatataat aagttatcac
     3181 gtaagtagaa catgaaataa caatataatt atcgtatgag ttaaatctta aaagtcacgt
     3241 aaaagataat catgcgtcat tttgactcac gcggtcgtta tagttcaaaa tcagtgacac
     3301 ttaccgcatt gacaagcacg cctcacggga gctccaagcg gcgactgaga tgtcctaaat
     3361 gcacagcgac ggattcgcgc tatttagaaa gagagagcaa tatttcaaga atgcatgcgt
     3421 caattttacg cagactatct ttctagggtt aatctagctg catcaggatc atatcgtcgg
     3481 gtcttttttc cggctcagtc atcgcccaag ctggcgctat ctgggcatcg gggaggaaga
     3541 agcccgtgcc ttttcccgcg aggttgaagc ggcatggaaa gagtttgccg aggatgactg
     3601 ctgctgcatt gacgttgagc gaaaacgcac gtttaccatg atgattcggg aaggtgtggc
     3661 catgcacgcc tttaacggtg aactgttcgt tcaggccacc tgggatacca gttcgtcgcg
     3721 gcttttccgg acacagttcc ggatggtcag cccgaagcgc atcagcaacc cgaacaatac
     3781 cggcgacagc cggaactgcc gtgccggtgt gcagattaat gacagcggtg cggcgctggg
     3841 atattacgtc agcgaggacg ggtatcctgg ctggatgccg cagaaatgga catggatacc
     3901 ccgtgagtta cccggcgggc gcgcttggcg taatcatggt catagctgtt tcctgtgtga
     3961 aattgttatc cgctcacaat tccacacaac atacgagccg gaagcataaa gtgtaaagcc
     4021 tggggtgcct aatgagtgag ctaactcaca ttaattgcgt tgcgctcact gcccgctttc
     4081 cagtcgggaa acctgtcgtg ccagctgcat taatgaatcg gccaacgcgc ggggagaggc
     4141 ggtttgcgta ttgggcgctc ttccgcttcc tcgctcactg actcgctgcg ctcggtcgtt
     4201 cggctgcggc gagcggtatc agctcactca aaggcggtaa tacggttatc cacagaatca
     4261 ggggataacg caggaaagaa catgtgagca aaaggccagc aaaaggccag gaaccgtaaa
     4321 aaggccgcgt tgctggcgtt tttccatagg ctccgccccc ctgacgagca tcacaaaaat
     4381 cgacgctcaa gtcagaggtg gcgaaacccg acaggactat aaagatacca ggcgtttccc
     4441 cctggaagct ccctcgtgcg ctctcctgtt ccgaccctgc cgcttaccgg atacctgtcc
     4501 gcctttctcc cttcgggaag cgtggcgctt tctcatagct cacgctgtag gtatctcagt
     4561 tcggtgtagg tcgttcgctc caagctgggc tgtgtgcacg aaccccccgt tcagcccgac
     4621 cgctgcgcct tatccggtaa ctatcgtctt gagtccaacc cggtaagaca cgacttatcg
     4681 ccactggcag cagccactgg taacaggatt agcagagcga ggtatgtagg cggtgctaca
     4741 gagttcttga agtggtggcc taactacggc tacactagaa gaacagtatt tggtatctgc
     4801 gctctgctga agccagttac cttcggaaaa agagttggta gctcttgatc cggcaaacaa
     4861 accaccgctg gtagcggtgg tttttttgtt tgcaagcagc agattacgcg cagaaaaaaa
     4921 ggatctcaag aagatccttt gatcttttct acggggtctg acgctcagtg gaacgaaaac
     4981 tcacgttaag ggattttggt catgagatta tcaaaaagga tcttcaccta gatcctttta
     5041 aattaaaaat gaagttttaa atcaatctaa agtatatatg agtaaacttg gtctgacagt
     5101 taccaatgct taatcagtga ggcacctatc tcagcgatct gtctatttcg ttcatccata
     5161 gttgcctgac tccccgtcgt gtagataact acgatacggg agggcttacc atctggcccc
     5221 agtgctgcaa tgataccgcg agacccacgc tcaccggctc cagatttatc agcaataaac
     5281 cagccagccg gaagggccga gcgcagaagt ggtcctgcaa ctttatccgc ctccatccag
     5341 tctattaatt gttgccggga agctagagta agtagttcgc cagttaatag tttgcgcaac
     5401 gttgttgcca ttgctacagg catcgtggtg tcacgctcgt cgtttggtat ggcttcattc
     5461 agctccggtt cccaacgatc aaggcgagtt acatgatccc ccatgttgtg caaaaaagcg
     5521 gttagctcct tcggtcctcc gatcgttgtc agaagtaagt tggccgcagt gttatcactc
     5581 atggttatgg cagcactgca taattctctt actgtcatgc catccgtaag atgcttttct
     5641 gtgactggtg agtactcaac caagtcattc tgagaatagt gtatgcggcg accgagttgc
     5701 tcttgcccgg cgtcaatacg ggataatacc gcgccacata gcagaacttt aaaagtgctc
     5761 atcattggaa aacgttcttc ggggcgaaaa ctctcaagga tcttaccgct gttgagatcc
     5821 agttcgatgt aacccactcg tgcacccaac tgatcttcag catcttttac tttcaccagc
     5881 gtttctgggt gagcaaaaac aggaaggcaa aatgccgcaa aaaagggaat aagggcgaca
     5941 cggaaatgtt gaatactcat actcttcctt tttcaatatt attgaagcat ttatcagggt
     6001 tattgtctca tgagcggata catatttgaa tgtatttaga aaaataaaca aataggggtt
     6061 ccgcgcacat ttccccgaaa agtgccacct aaattgtaag cgttaatatt ttgttaaaat
     6121 tcgcgttaaa tttttgttaa atcagctcat tttttaacca ataggccgaa atcggcaaaa
     6181 tcccttataa atcaaaagaa tagaccgaga tagggttgag tgttgttcca gtttggaaca
     6241 agagtccact attaaagaac gtggactcca acgtcaaagg gcgaaaaacc gtctatcagg
     6301 gcgatggccc actacgtgaa ccatcaccct aatcaagttt tttggggtcg aggtgccgta
     6361 aagcactaaa tcggaaccct aaagggagcc cccgatttag agcttgacgg ggaaagccgg
     6421 cgaacgtggc gagaaaggaa gggaagaaag cgaaaggagc gggcgctagg gcgctggcaa
     6481 gtgtagcggt cacgctgcgc gtaaccacca cacccgccgc gcttaatgcg ccgctacagg
     6541 gcgcgtccca ttcgccattc aggctgcgca actgttggga agggcgatcg gtgcgggcct
     6601 cttcgctatt acgccagctg gcgaaagggg gatgtgctgc aaggcgatta agttgggtaa
     6661 cgccagggtt ttcccagtca cgacgttgta aaacgacggc cagtgagcgc gcctcgttca
     6721 ttcacgtttt tgaacccgtg gaggacgggc agactc
//

载体图谱质粒图谱pdf版和相关资料下载

载体质粒应用举例

分享到:

全部载体分类

相关载体

相关文章

相关问答

Copyright © 20012-2013 BIOFENG. 生物风 版权所有 Powered by Biofeng 沪ICP备2021037978号-1
欢迎您的访问和咨询....
